Linear Phased Array Transducers

 Ultrasonic linear phased array transducers are dedicated to flexible and high speed inspection of long products like: plates, tubes, bars, composite panels or welds.

 Using a single probe, it is possible for a large area to be scanned with various focus distances and angles. Linear phased array technology can replace either mechanical scanning or a set of UT probes.

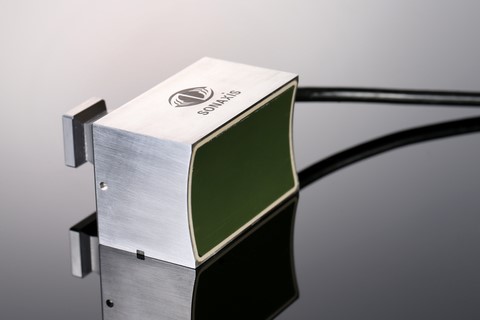

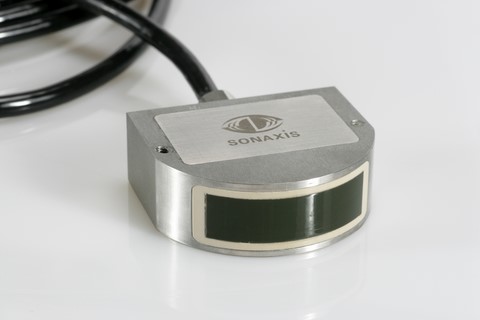

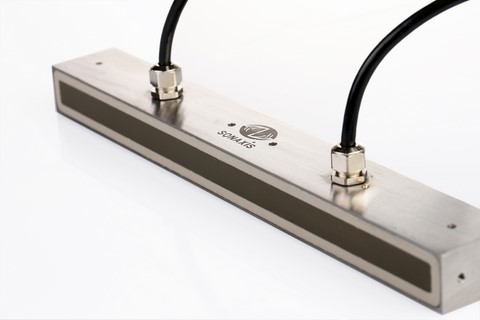

 Ultrasonic linear phased array transducers are available in the immersion or conatct inpection technique. They are manufactured with the piezo-composite technology and can be plane, curved (convex or concave), or transversely focussed.

 These transducers can be provided with specific wedges, irrigation chambers, cables or adaptors and any accessory that may be needed for the industrial application.

Standard configurations are:
Frequenye (MHz)
Minimum Pitch (mm)
Minimum Radius of curvature (mm)
Number of Elements
0.5
2.5
40
16 - 32 - 64 - 128 - 256 - 512
1
1.0
25
16 - 32 - 64 - 128 - 256 - 512
2
0.5
10
16 - 32 - 64 - 128 - 256 - 512
3
0.5
10
16 - 32 - 64 - 128 - 256 - 512
5
0.3
5
16 - 32 - 64 - 128 - 256 - 512
7
0.3
5
16 - 32 - 64 - 128 - 256 - 512
10
0.25
3
16 - 32 - 64 - 128 - 256 - 512
15
0.2
3
16 - 32 - 64 - 128 - 256
20
0.2
3
16 - 32 - 64 - 128

 Download the data sheet in French.
